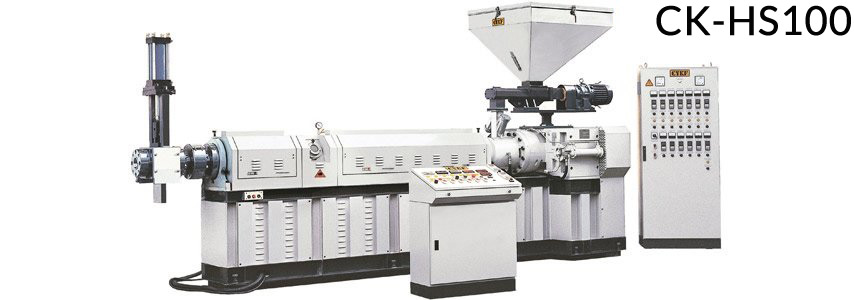

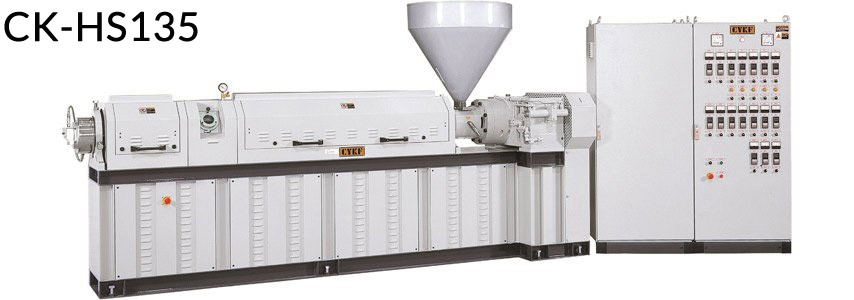

HS Series Single Screw Pelletizing Extruder

Applicable Materials
Various materials compounding and recycling as PP, HDPE, LDPE, PS, ABS, ABS & PC, PC, PA, PET, PBT...etc.

The HS Series Single Screw Plastic Pelletizing Compounding Extruder can be applied to wide range of applications, including coloring, compounding, or recycling.

High Quality Pellets, More Productivity
The specially designed screws and barrels ensure excellent mixing and dispersion performance of the plastic extrusion machine, which assist customers to achieve higher throughput with excellent pellets quality. The possible problems of spot or color difference are improved effectively. Customers are able to have a rapid return on investment.

Durable and Steady
Our HS series single screw plastic pelletizing compounding extruders are durable and steady. All thanks to our strict control policy in product quality.

One-Stop-Shop Service is Available
CYKF is capable of offering complete extrusion lines for the HS Series Single Screw Extruder. Our integration services for the plastic extrusion machine and its related upstream or downstream equipment make the whole consulting and purchasing process, installation, and maintenance easier and quicker.

Diverse Options
For our HS series, we supply 4 models with different output capabilities. Please download our product catalog or directly contact us for more detailed information.

MODEL	CK-HS85	CK-HS100	CK-HS120	CK-HS135
Screw diameter (mm)	85	100	120	135
L/D Ratio	32~36	32~36	32~36	32~36
Main motor (kw)	75	110	160	200
Output (kg/hr)	200~300	300~450	500~750	700~1000

* Output depends on different materials and data above is based on ABS.
* All specifications, design and characteristics shown above are subject to change without prior notice.
