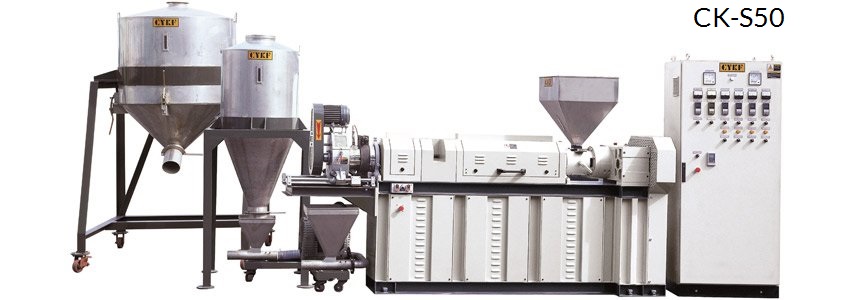

- PVC Pelletizing PVC Recycling Pelletizing System
-
Product DescriptionVarious soft and rigid PVC materials compounding and recycling.
-
Product Feature
- Choice of air, oil or water cooling system on barrel.
- Screw and barrel are manufactured from special alloy steel, featuring maximum efficiency and long service life.
- Enclosed dust resistant control box use PID or PC micro-computer controller provides user-friendly operation.
- Drive provides stable driving performance, low noise, low power consumption and greater power output.
-
Product Specification
* Output depends on different materials and data above is based on rigid PVC.MODEL CK-S50 CK-S65 CK-S75 CK-S85 CK-S100 CK-S120 Screw diameter (mm) 50 65 75 85 100 120 L/D Ratio 32~40 32~40 32~40 32~40 32~40 32~40 Main motor (kw) 18 22 30 37 75 110 Output (kg/hr) 25~40 50~90 70~130 100~180 150~250 200~350
* All specifications, design and characteristics shown above are subject to change without prior notice.
