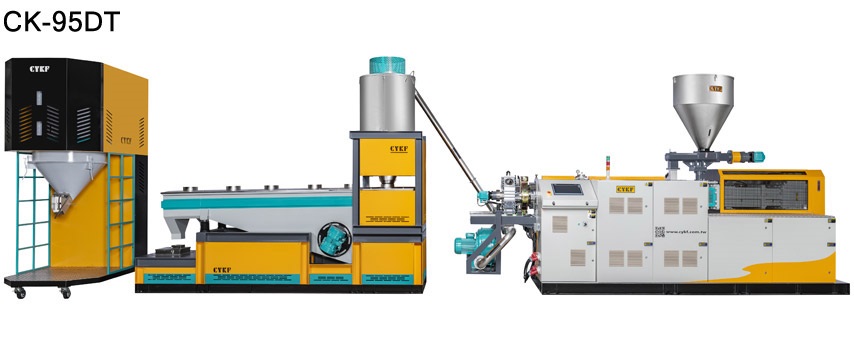

PVC Twin Screw Pelletizing Compounding System

Play Audio

Product Description

Applicable Material

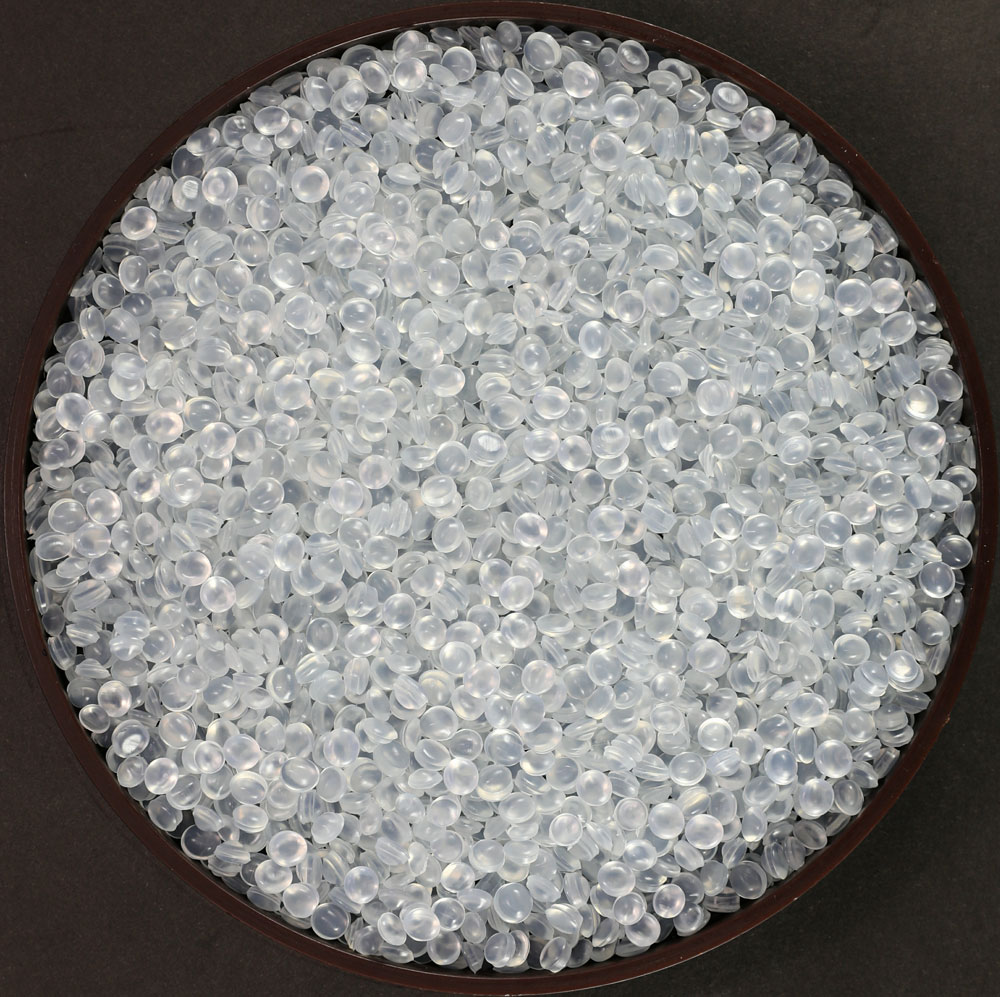

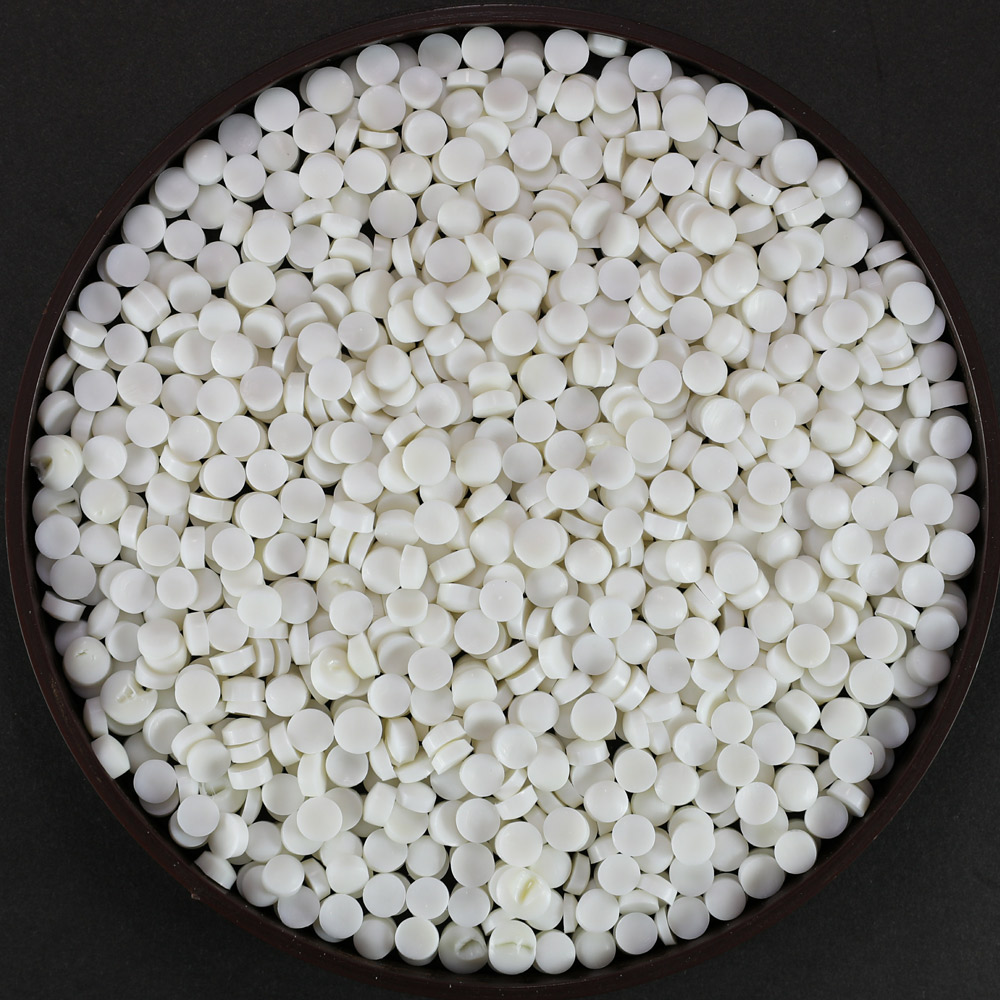

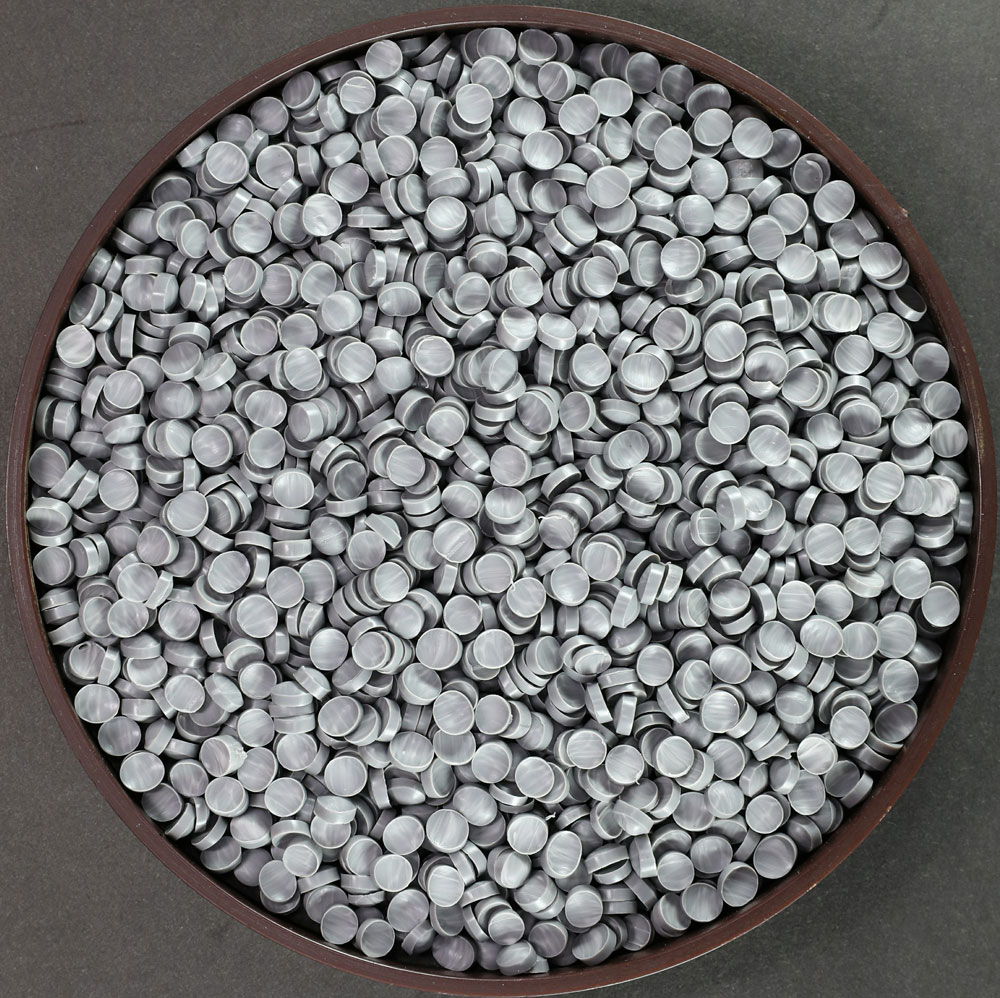

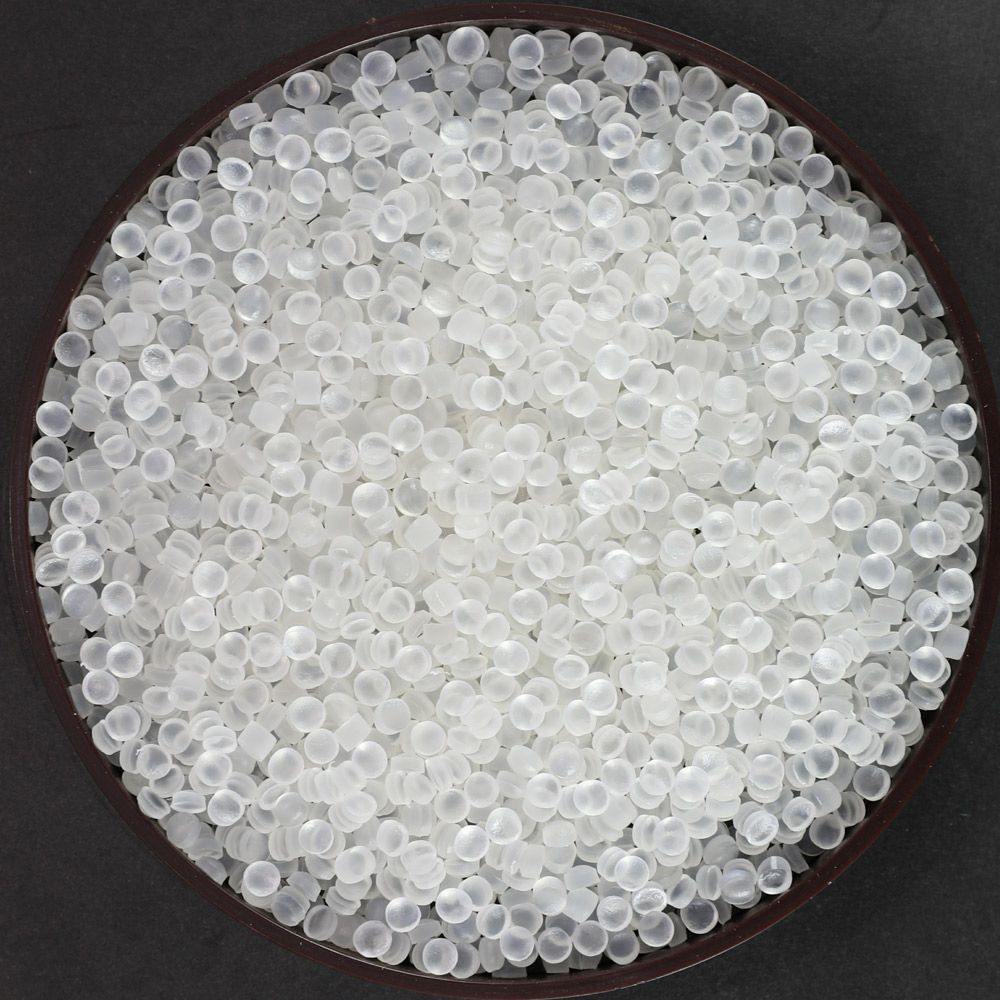

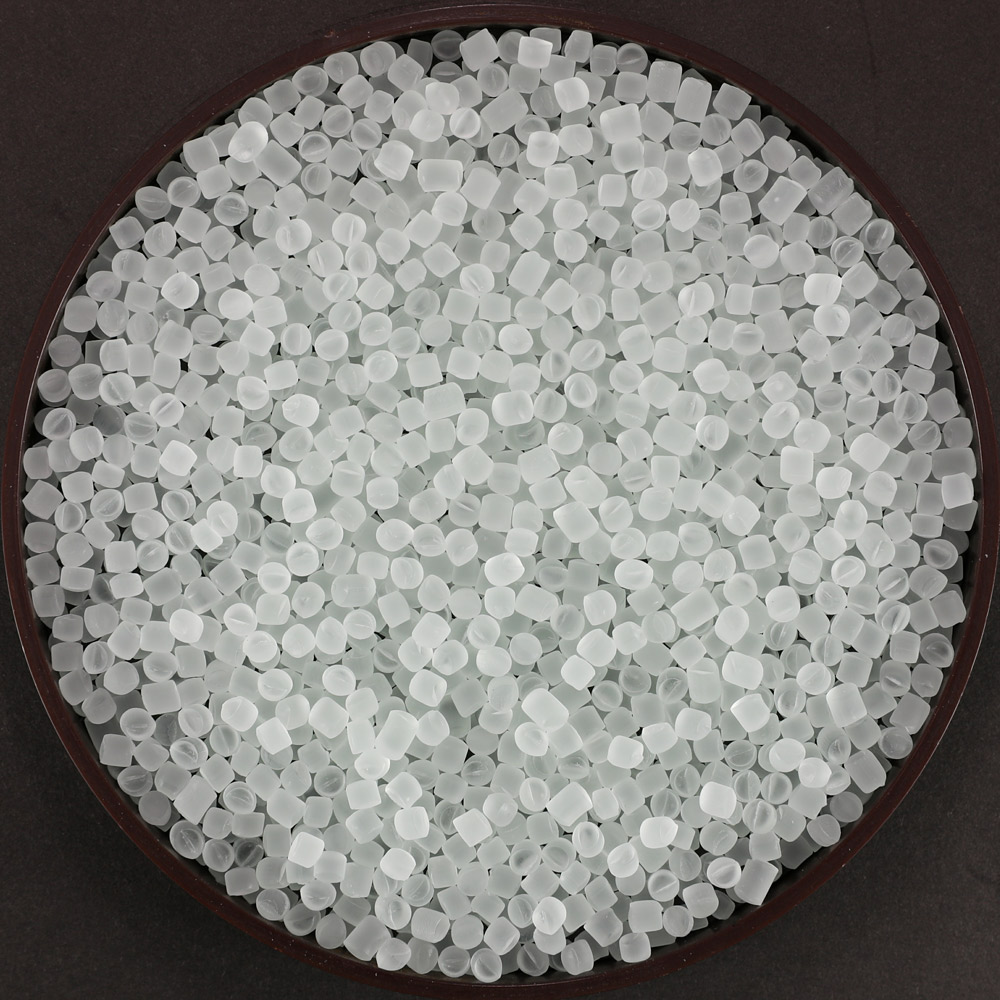

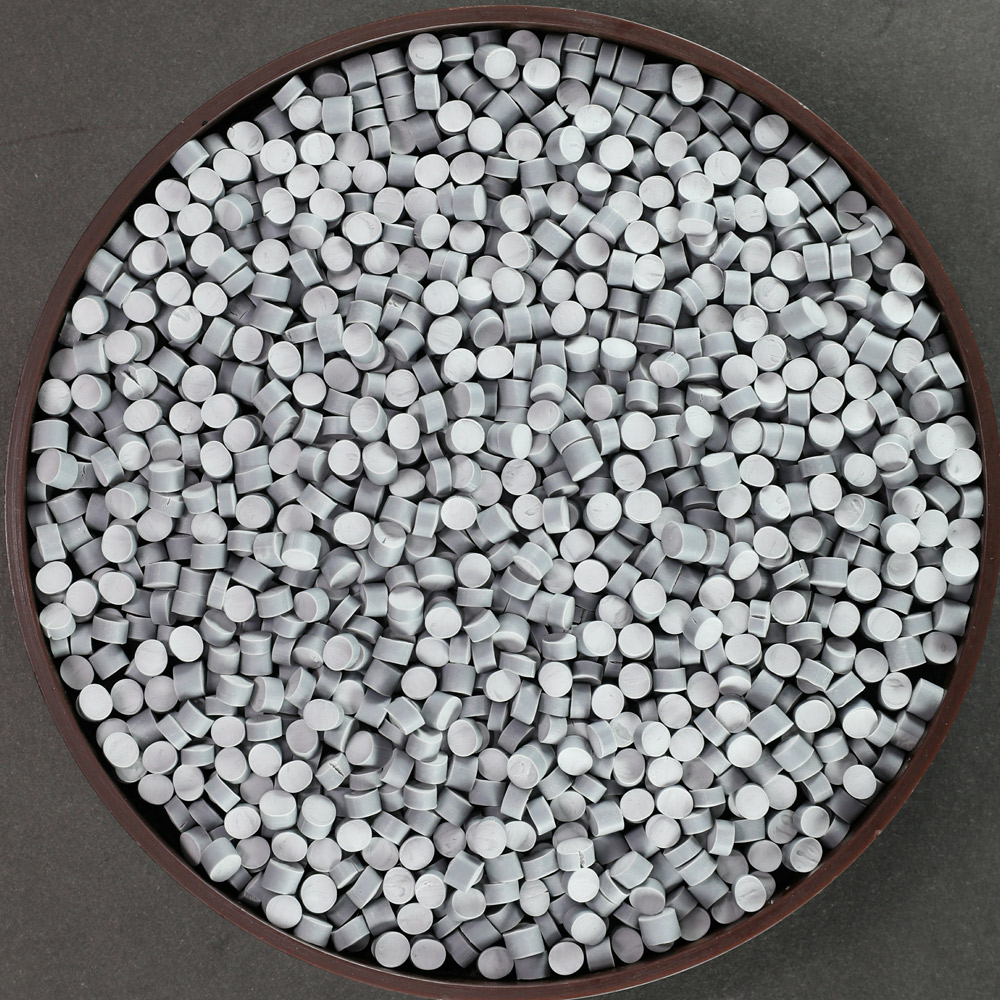

UPVC, CPVC, medical grade, soft, rigid, foam and wood powder additive.
Product Feature

DT Series PVC Twin Screw Pelletizing Compounding Extrusion Line is designed especially for PVC materials.

One-Stop-Shop Service
CYKF provides complete plastic extrusion lines to worldwide customers, from raw materials feeding to pellets storage. Our integration capability for plastic extrusion machine and its upstream, downstream equipment makes the whole consulting, purchasing, installation, and maintenance of complete extrusion lines easier and quicker.

More Throughput

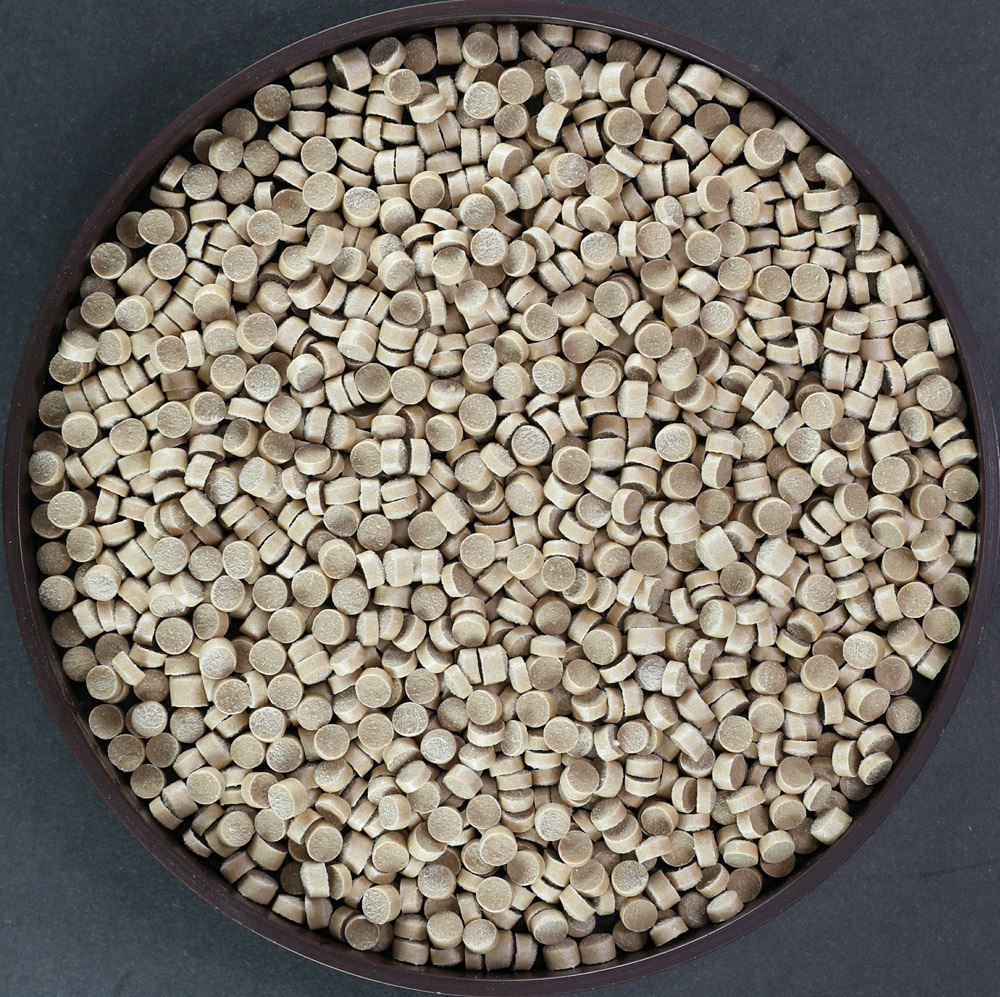

The screw and barrel of the plastic extrusion machine are custom designed based on customer’s PVC materials and formulas. With our 20 years experiences on PVC, we are able to work out optimal layout of the screw geometry to let our extruders achieve excellent mixing behavior to bring high quality PVC pellets and higher throughput, so customers can have a rapid return on investment.

Durable and Steady
Our PVC Twin Screw Pelletizing Compounding Extrusion Lines are durable and steady. Some of our equipment are still operating even after 20 years of non-stop service. All thanks to our strict control policy in product quality.

Diverse Options
For our DT series, we supply 5 models which have different outputs and combination of functions. Please download our product catalog or directly contact us for more detailed information.

Product Specification

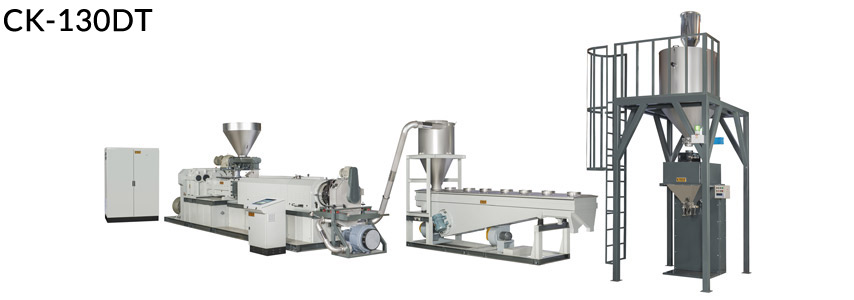

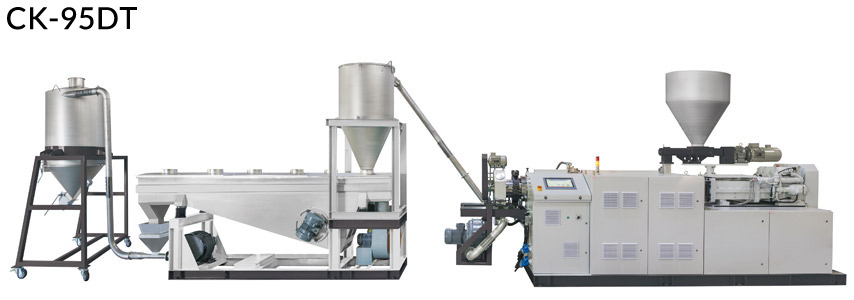

MODEL	CK-55DT	CK-75DT	CK-95DT	CK-110DT	CK-130DT
Screw diameter (mm)	55	75	95	108	132
L/D Ratio	22~30	22~30	22~30	22~30	22~30
Main motor (kw)	11	30	55	90	110
Output (kg/hr)	Soft PVC: 30~60 Rigid PVC: 45~90	Soft PVC: 100~200 Rigid PVC: 150~250	Soft PVC: 200~400 Rigid PVC: 250~550	Soft PVC: 400~650 Rigid PVC: 450~750	Soft PVC: 600~1000 Rigid PVC: 800~1200

* Output depends on different materials.
* All specifications, design and characteristics shown above are subject to change without prior notice.
