Profile Extruder
- Home
- Products
- Pipe / Profile Profile Extruder
-
Product DescriptionPP, PE, PVC+WOOD POWDER and ABS, etc.
-
Product Feature
- This machine is designed for various plastic pro le production.
- As material character and capacity request, the main extruder has two choices of single screw and parallel type twin screw.
- Easy to operate. Ensures smooth performance.
- Vacuum cooling calibration molding, force cool and calibrate pro le - superior and consistant product quality.
- Downstream equipment mechanical design makes the machine easily adjustable: forward, backward, right-left, up and down - simple but effective.
-
Product Specification

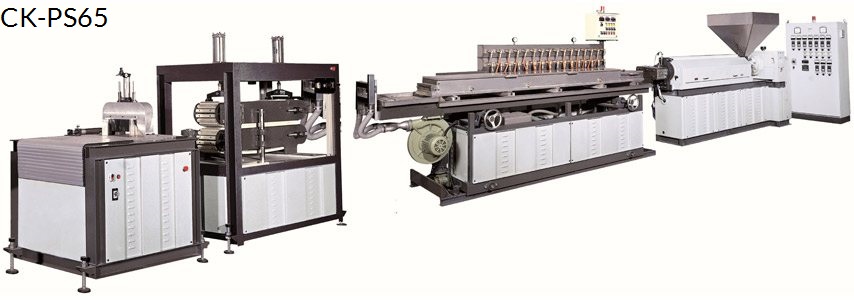

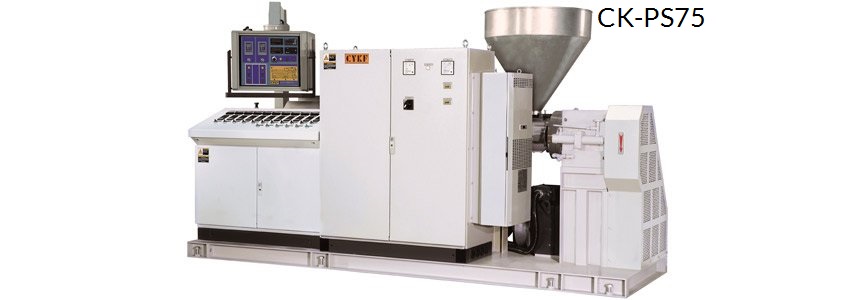

* Output as different material the output capacity basic by Rigid PVC.MODEL CK-PS30 CK-PS50 CK-PS65 CK-PS75 CK-PS85 CK-PS100 CK-PS120 Screw diameter (mm) 30 50 65 75 85 100 120 L/D Ratio 26~30 26~30 26~30 26~30 26~30 26~30 26~30 Main motor (kw) 5.5 18 22 30 37 75 110 Output (kg/hr) 5~10 20~40 40~80 55~110 70~140 100~200 150~300
* All specifications, design and characteristics shown above are subject to change without prior notice.
