Automatic Metering Weighing and Conveying Pelletizing Compounding Line
- Home
- Products
- Pelletizing Extruder
- Co-rotating Twin Screw Pelletizing Compounding Extruder Automatic Metering Weighing and Conveying Pelletizing Compounding Line
-
Product DescriptionHigh percentage filler compounds with plastic material as CaCO3, TiO2, Talc, pigment...etc.
-
Product Feature
- CaCo3/pigment/Natural material etc. High concentration masterbatch.
- Applicable material for high percentage powder production and various material compounding production.
- Auto feeding system as percentage and high accurately feed powder/pellet/fiber/liquid various formulation for different feeding zone of extruder for production at same time.
- Contact with water ring system( underwater pelletizer) and pellet finished dust-proof unit, weight packing system. Auto function control by Human interface computer system could safety alarm or Auto stop equipment. The working function could design as operators request.
-

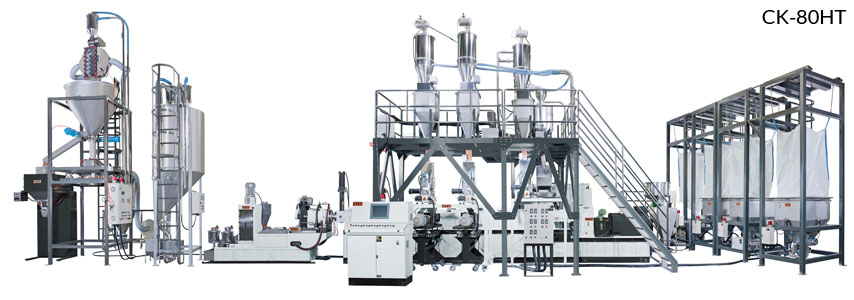

Product SpecificationCo-rotating Twin screw extruder
* Output depends on different materials and data above is based on ABS.MODEL CK-32HT CK-42HT CK-58HT CK-70HT CK-80HT CK-92HT Screw diameter (mm) 32 42 58 71 80 92 L/D Ratio 36~46 36~48 36~48 36~48 36~48 36~48 Main motor (kw) 18 55 132 200 250 450 Output (kg/hr) 20~80 50~180 150~450 250~700 350~950 500~1500
* All specifications, design and characteristics shown above are subject to change without prior notice.
