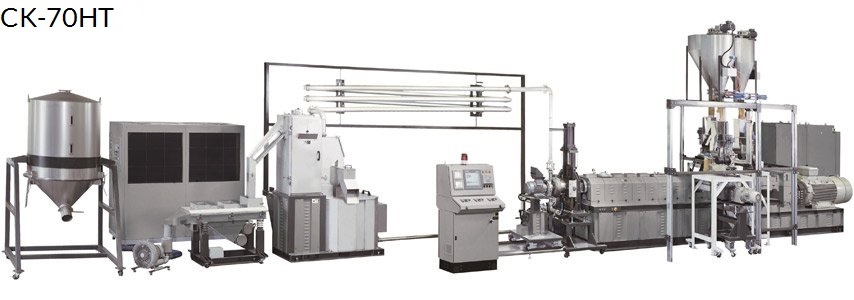

- Co-rotating Twin Screw Pelletizing Compounding Extruder Underwater Cutting Type
-

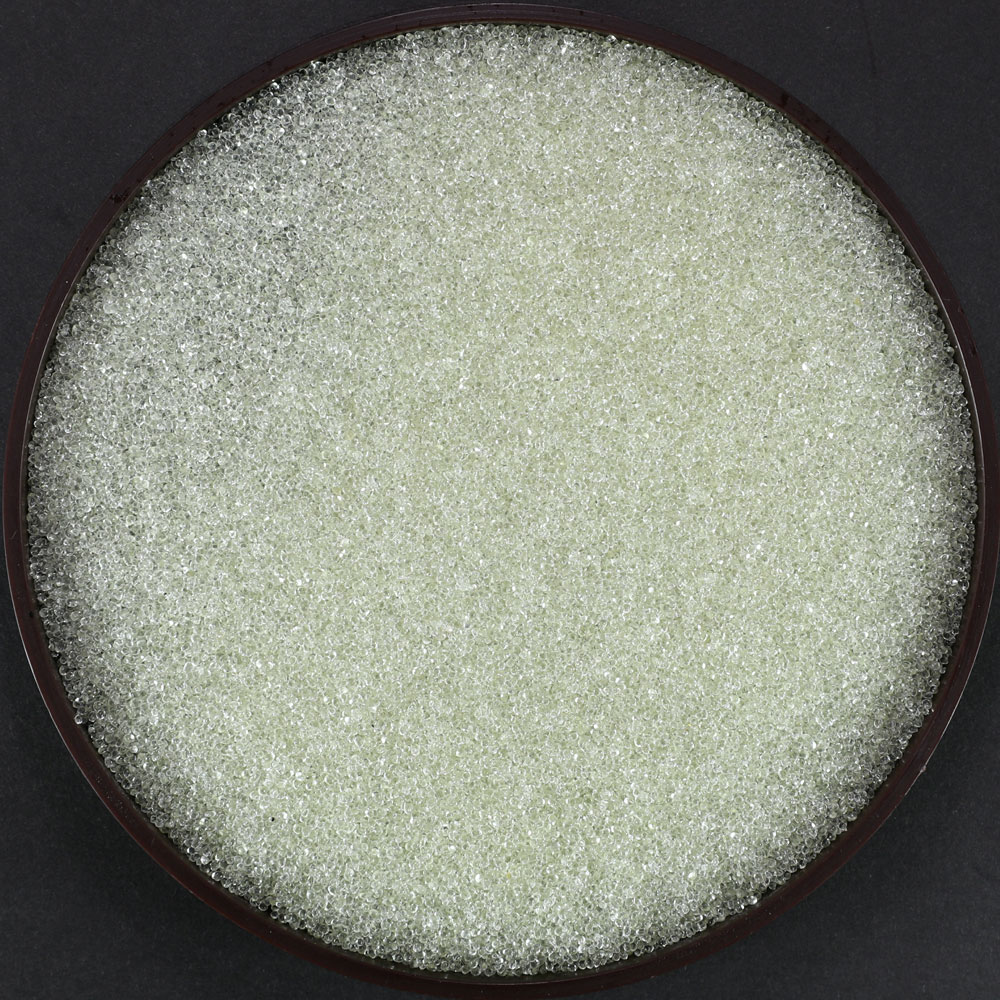

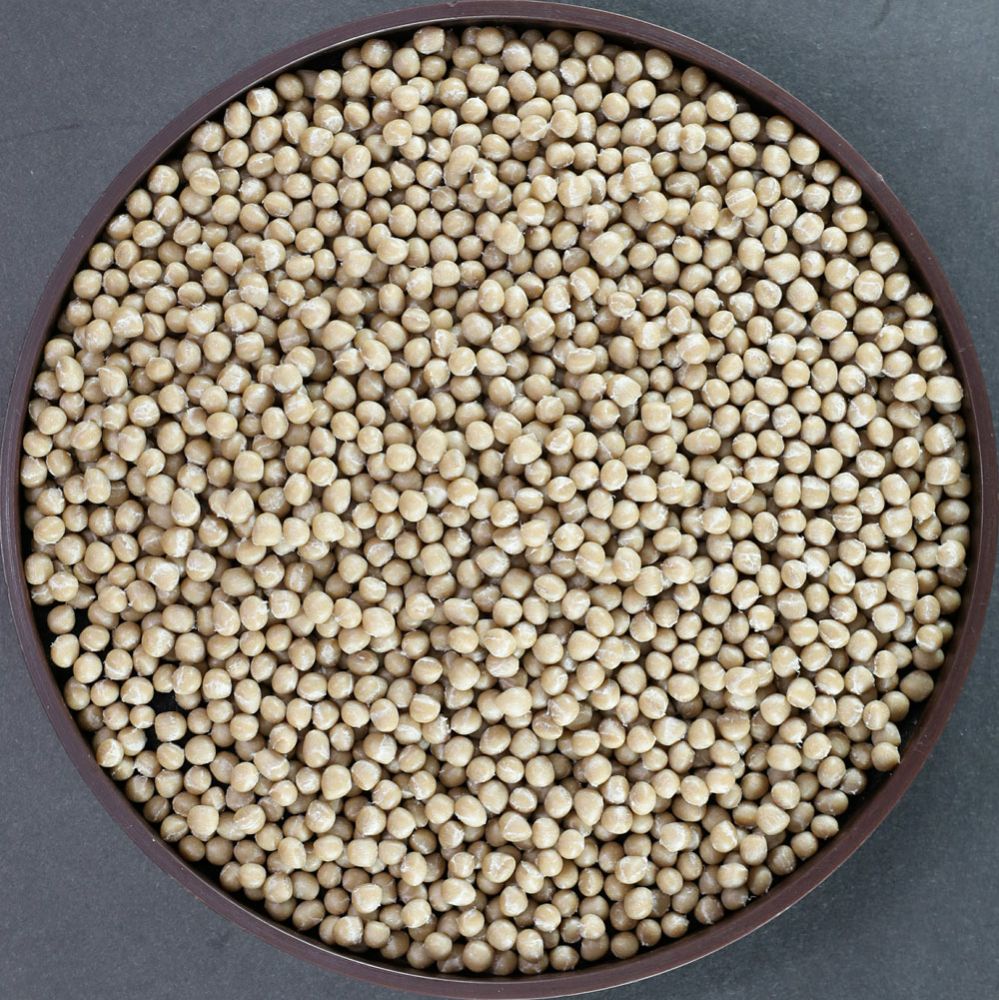

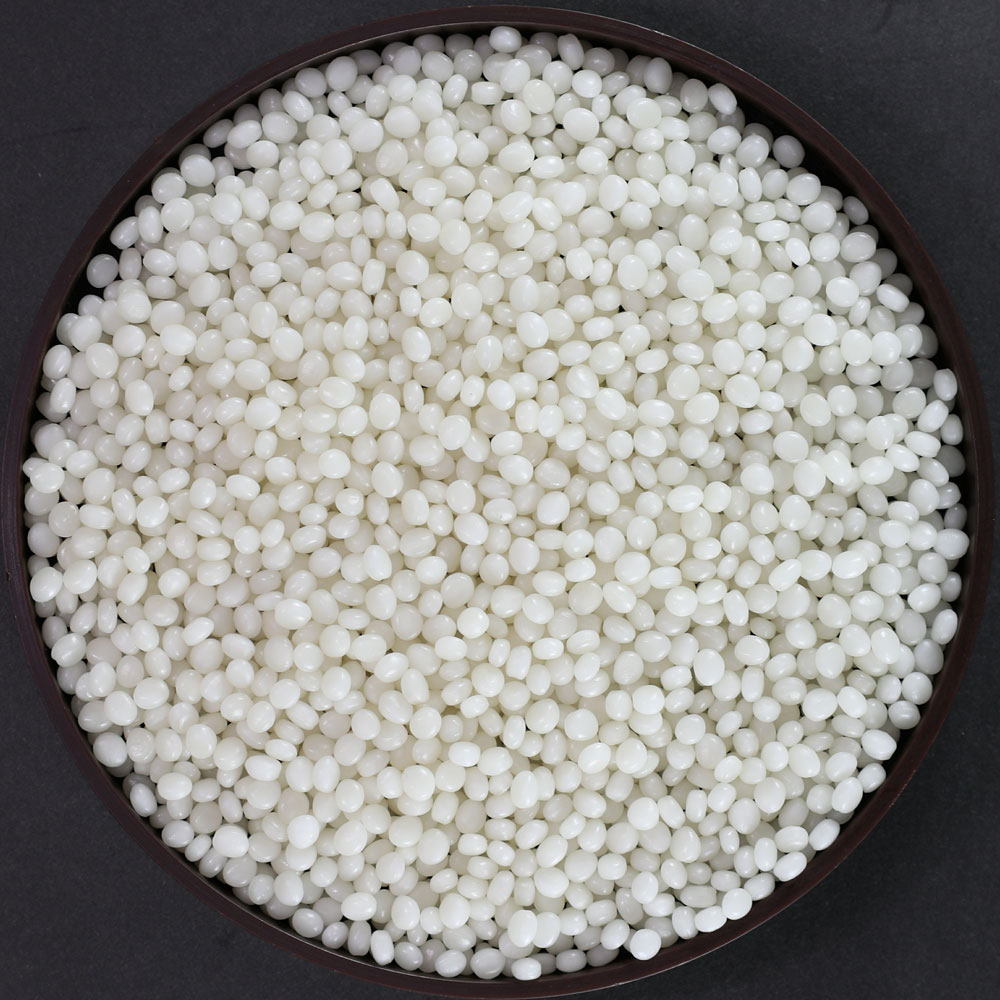

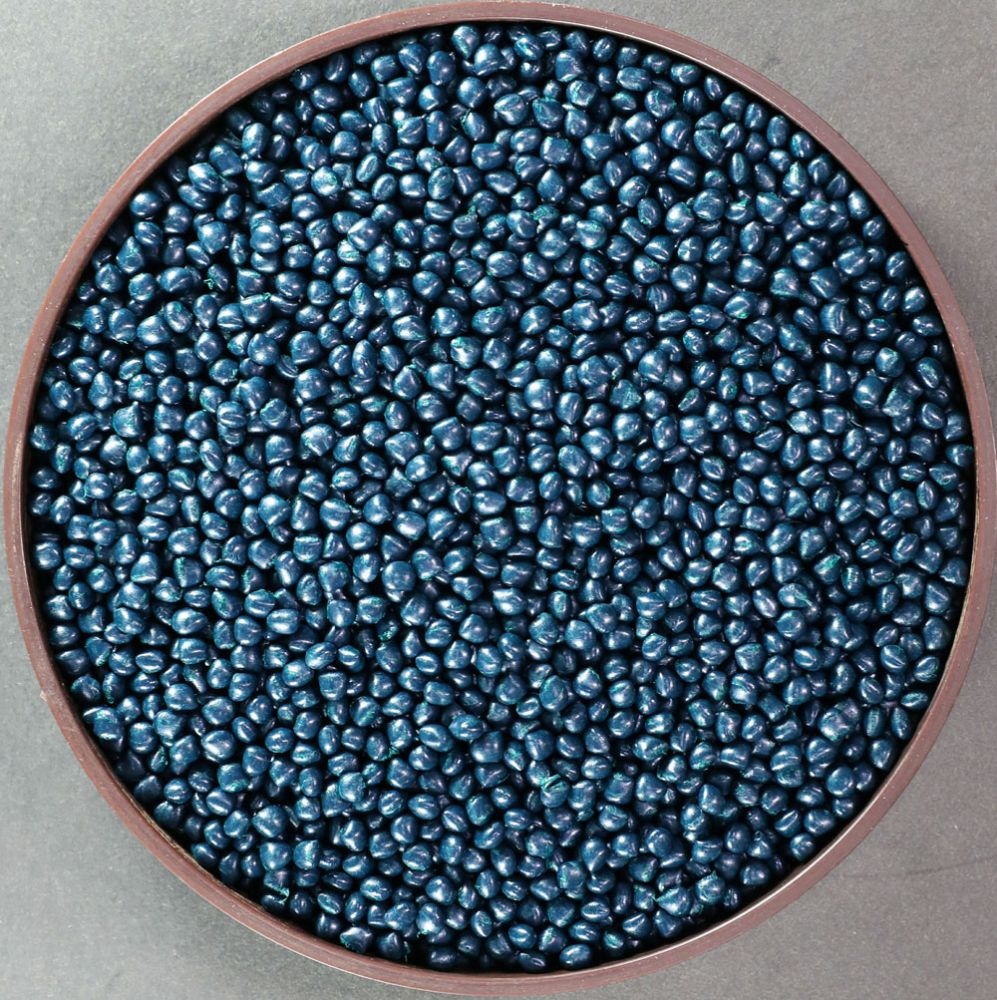

Product DescriptionTPU, TPE, TPV, TPR, PP, PS, PLA, PVA, SEBS, EVA, rubber, hot-melt adhesive, special resin, micro pellet...etc.
-
Product Feature
- It is especially suitable for materials with low melting temperature, high viscosity and that are difficult to cut with conventional steand pelletizer systems. This pelletizing system fuatures high dficiency and easy operation.
- It is applicable for production of micro pellets.
- The machine is automatically operated. All machine motions, from dosing feeder, extruder, cutting speed to dewatering are adjusted synchronously for maximum operation convenience.
-
Product Specification

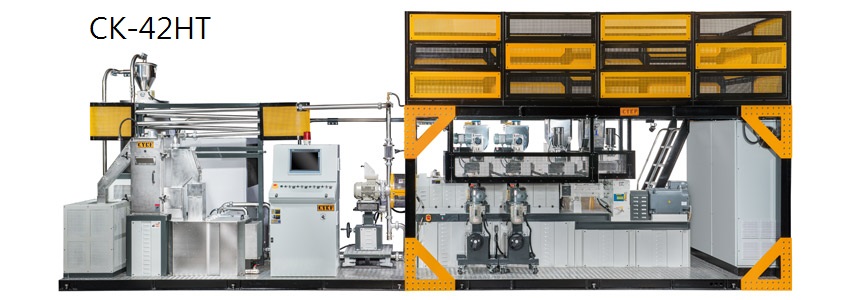

* Output depends on different materials and data above is based on TPU.MODEL CK-32HT CK-42HT CK-58HT CK-70HT CK-80HT CK-92HT Screw diameter (mm) 32 42 58 71 80 92 L/D Ratio 41 44 48 48 48 48 Main motor (kw) 18 55 132 200 250 450 Output (kg/hr) 20~80 60~150 150~300 250~500 350~600 500-850
* All specifications, design and characteristics shown above are subject to change without prior notice.
